Industrial Laundry Systems

Industrial Washers & Dryers

Heavy-duty washer-extractors and tumble dryers from 30 kg to 120 kg — engineered for hotels, healthcare, and around-the-clock industrial laundries.

Request a Quote (714) 331-4401

Equipment Overview

Four Heavy-Duty Product Lines

Kingstar Industrial spans two washer builds and two dryer builds — standard and forward-tilting — from 30 kg to 120 kg. Every line is engineered for continuous, high-volume production. Jump to the category that fits your floor.

Industrial Washers

30 / 40 / 60 / 100 / 120 kg

SHS-2030 – SHS-2120

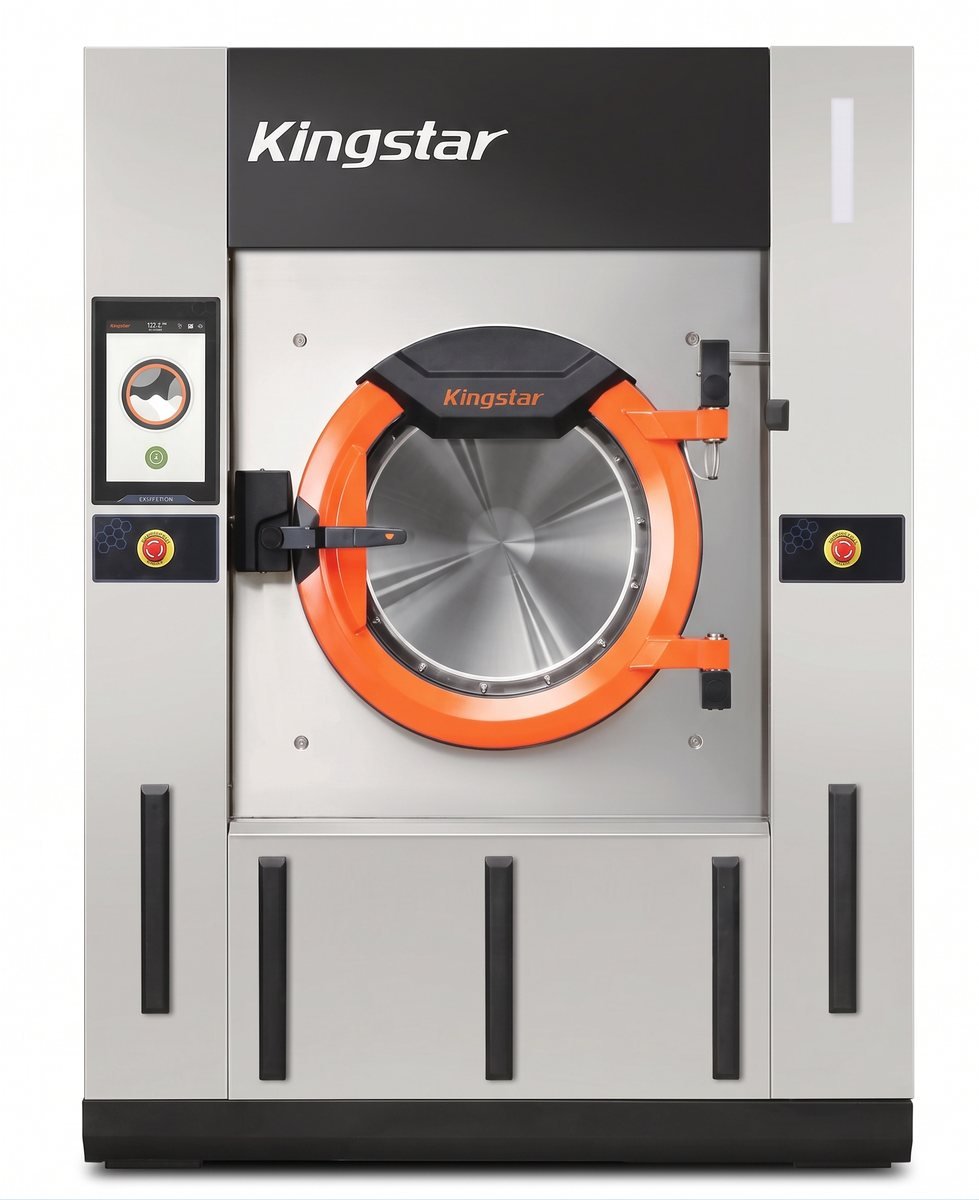

Washer-Extractor Kingstar industrial washer-extractor, 30 to 120 kg
30 kg40 kg60 kg100 kg120 kg

A fully automatic washer-extractor built for continuous production. A 12.1-inch HD touchscreen drives automatic water addition, prewash, main wash, rinse, and neutralizing, while 400G ultra-high extraction pulls maximum moisture for shorter drying and lower steam use. Smart load sensing tunes every cycle.

  • 400G ultra-high spin extraction — drier linens, lower steam use
  • 12.1" HD touchscreen with 30 preset + 5 one-touch programs
  • Triple shock absorption up to 98% — no fixed foundation
  • 270° rolled-edge drum opening protects garments
Request Washer Pricing View Specifications

Models in this category

SHS-2030

30 kg

Drum volume
300 L
Max spin
870 rpm
G-factor
350
Drum Ø
820 mm

SHS-2040

40 kg

Drum volume
400 L
Max spin
833 rpm
G-factor
350
Drum Ø
900 mm

SHS-2060

60 kg

Drum volume
600 L
Max spin
760 rpm
G-factor
350
Drum Ø
1080 mm

SHS-2100

100 kg

Drum volume
1000 L
Max spin
745 rpm
G-factor
400
Drum Ø
1310 mm

SHS-2120

120 kg

Drum volume
1200 L
Max spin
745 rpm
G-factor
400
Drum Ø
1310 mm

Industrial Forward Tilting Washers

100 / 120 kg

SHS-2100T – SHS-2120T

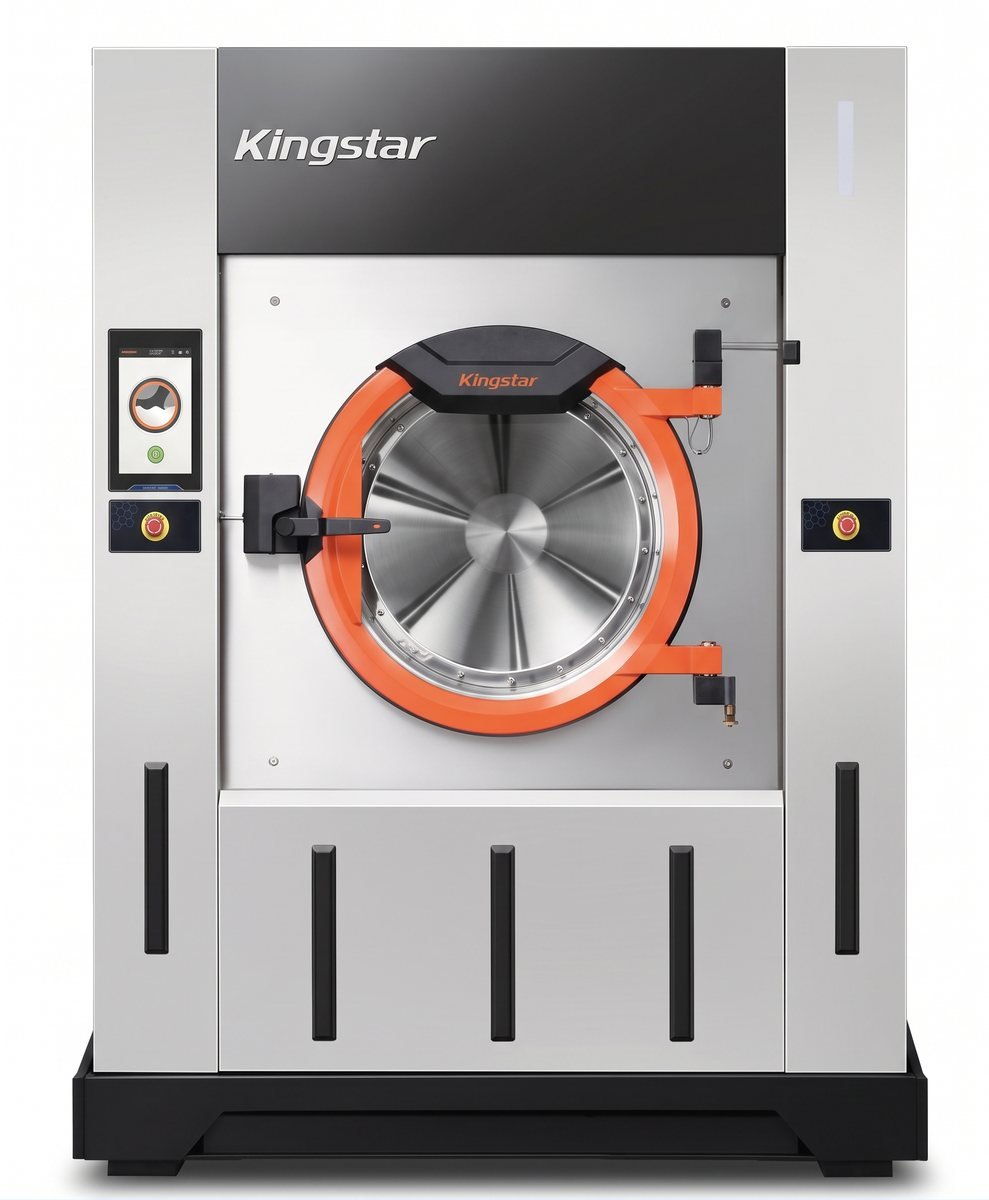

Forward-Tilting Washer Kingstar industrial forward-tilting washer, 100 and 120 kg
100 kg120 kg

The high-capacity washer-extractor with a 15° forward-tilting body that pours the load out at the front — cutting the manual handling of a full 100–120 kg batch. It keeps the same 400G extraction, 12.1-inch touchscreen, and triple suspension as the standard series.

  • 15° forward-tilting discharge reduces operator labor
  • 400G ultra-high extraction on both capacities
  • 15 kW transmission built for heavy continuous loads
  • Smart load sensing with 12.1" HD touchscreen control
Request Washer Pricing View Specifications

Models in this category

SHS-2100T

100 kg

Drum volume
1000 L
Max spin
745 rpm
G-factor
400
Front tilt
15°

SHS-2120T

120 kg

Drum volume
1200 L
Max spin
745 rpm
G-factor
400
Front tilt
15°

Industrial Dryers

40 / 60 / 100 / 120 kg

SDR-2040 – SDR-2120

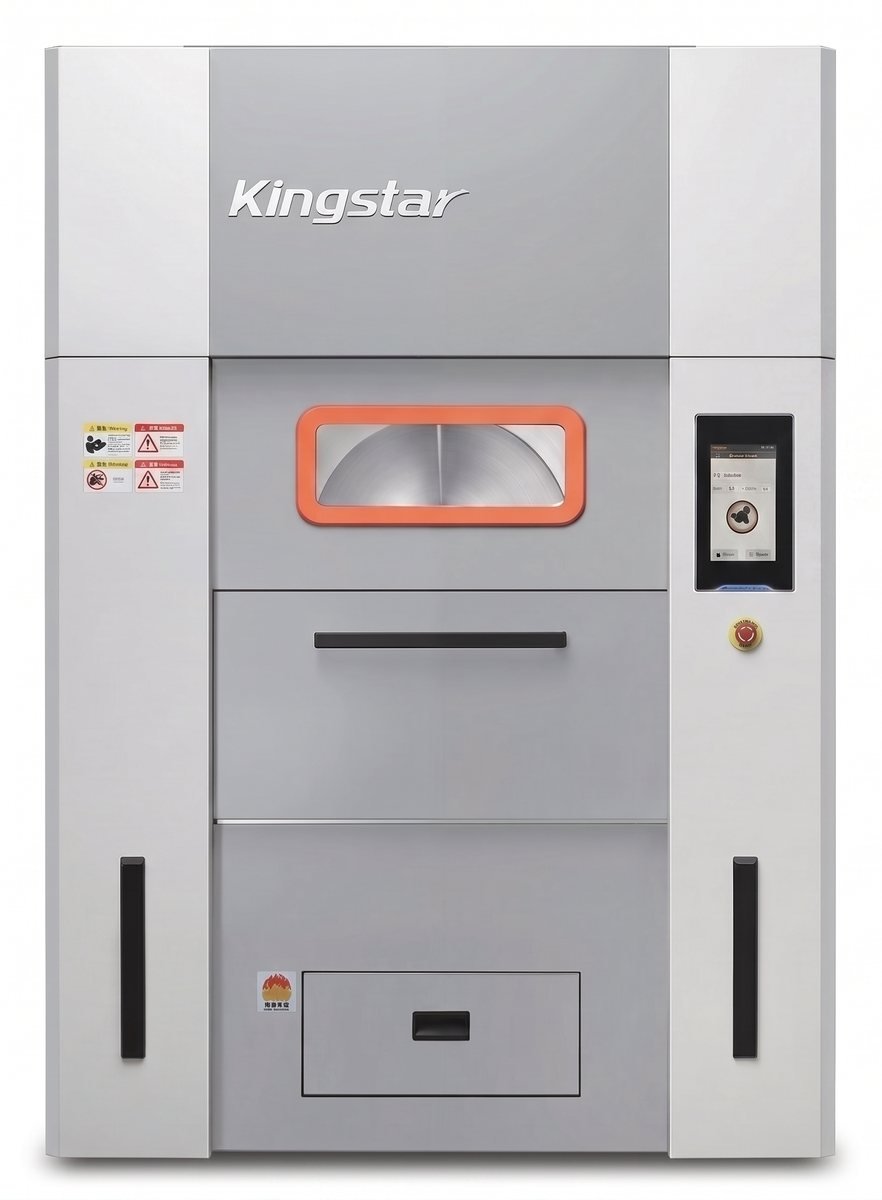

Tumble Dryer Kingstar industrial tumble dryer, 40 to 120 kg
40 kg60 kg100 kg120 kg

A high-efficiency tumble dryer with a 10-inch full-color touchscreen and 99 built-in, editable programs. Sensor-based humidity control adjusts drying time in real time to prevent over-drying and protect fabric. A 100 cm large-diameter door, 1:20 loading ratio, 304 stainless drum, and high-power insulated heating dry a full 100 kg load in about 40 minutes.

  • 10" full-color touchscreen with 99 editable programs
  • Sensor-based humidity control prevents over-drying
  • 1:20 loading ratio with a 304 stainless steel drum
  • 100 cm door — a 100 kg load dries in ~40 minutes
Request Dryer Pricing View Specifications

Models in this category

SDR-2040

40 kg

Drum volume
800 L
Drum Ø
1140 mm
Load ratio
1:20
Heater
36 kW

SDR-2060

60 kg

Drum volume
1220 L
Drum Ø
1260 mm
Load ratio
1:20
Heater
48 kW

SDR-2100

100 kg

Drum volume
2000 L
Drum Ø
1460 mm
Load ratio
1:20
Heater
81.6 kW

SDR-2120

120 kg

Control
10″ touch
Programs
99
Load ratio
1:20
Drum
304 stainless

Industrial Forward Tilting Dryers

100 kg

SDR-2100T

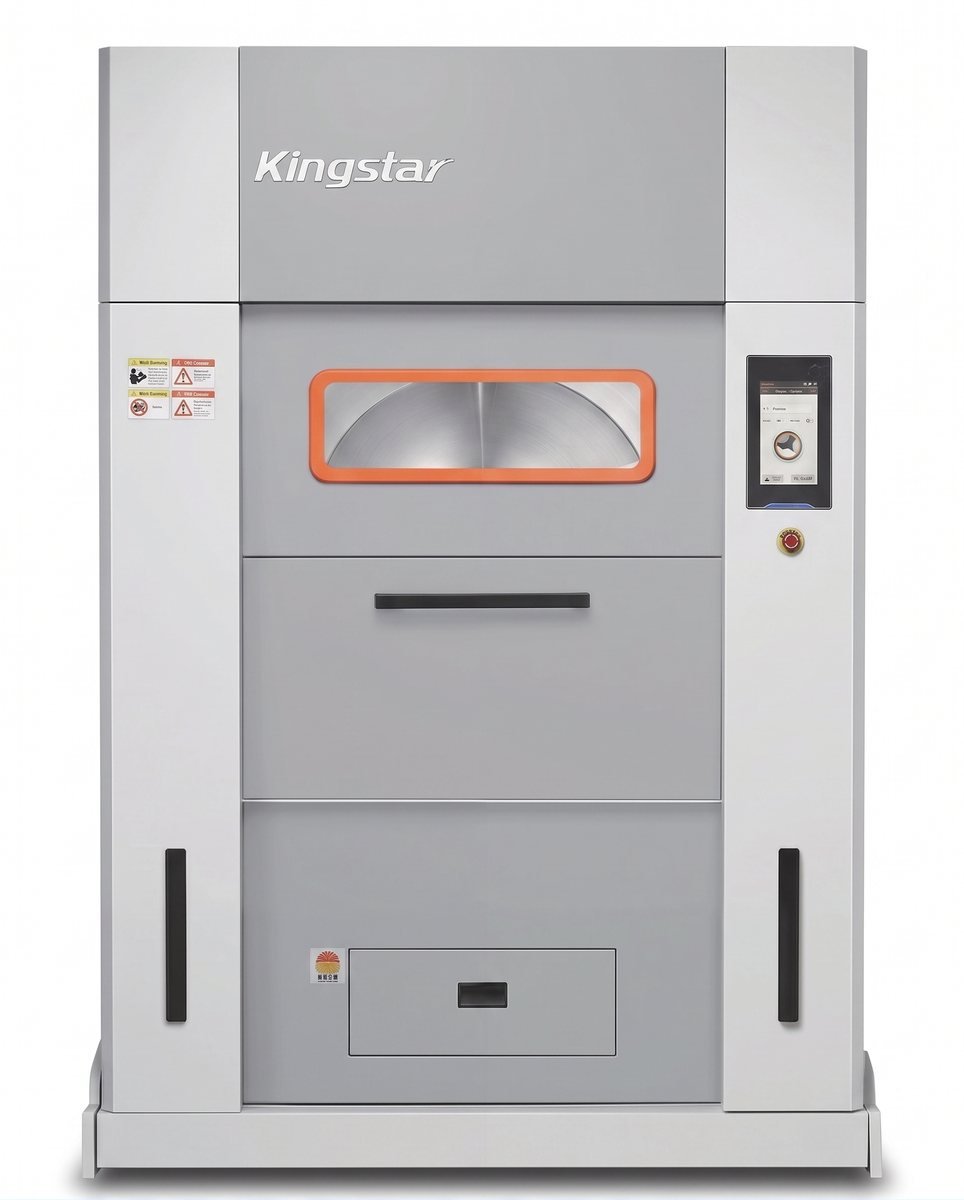

Forward-Tilting Dryer Kingstar industrial forward-tilting dryer, 100 kg
100 kg

The 100 kg tumble dryer with a front-tilt discharge frame that tips dried linen out at the front, cutting unload time and operator strain. It carries the same 10-inch touchscreen, sensor humidity control, and multiple heating options as the standard dryer, plus steam, electric, or gas heating.

  • Front-tilt discharge speeds unloading and lowers labor
  • Steam, electric, or gas heating to match your utilities
  • 10" touchscreen with sensor-based humidity control
  • 1:20 loading ratio with a 304 stainless steel drum
Request Dryer Pricing View Specifications

Models in this category

SDR-2100T

100 kg

Drum volume
2000 L
Drum Ø
1460 mm
Load ratio
1:20
Heater
81.6 kW

Key Features

Engineered for Performance

Every detail tuned for uptime, efficiency, and a finish your customers notice — across both the washer and dryer series.

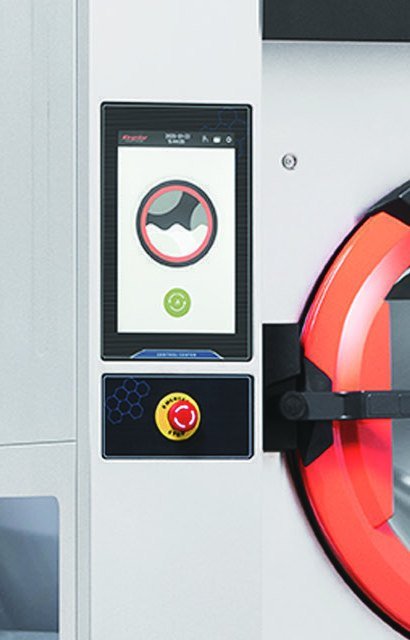

12.1-inch HD touchscreen control panel
Washer

12.1" HD Touchscreen

Intuitive control with 30 preset programs plus 5 one-touch cycles for water, prewash, wash, rinse, and neutralizing.

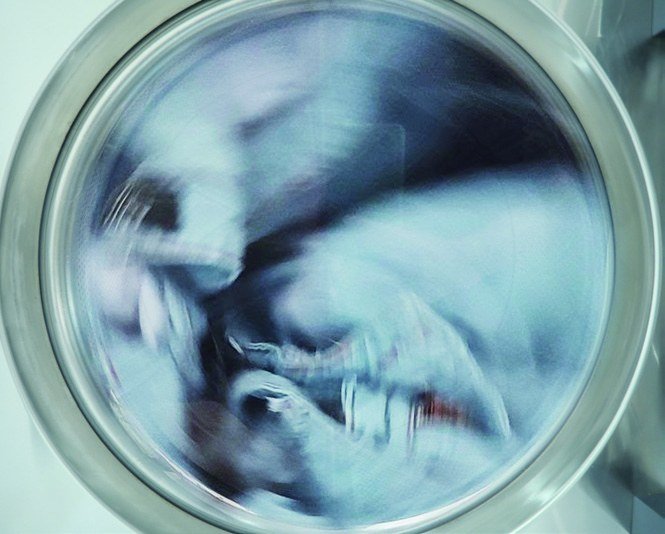

High-speed extraction spinning drum
Washer

400G Ultra-High Extraction

Reinforced structure, efficient transmission, and a high-quality inverter drive 400G force — drier linens and lower steam use.

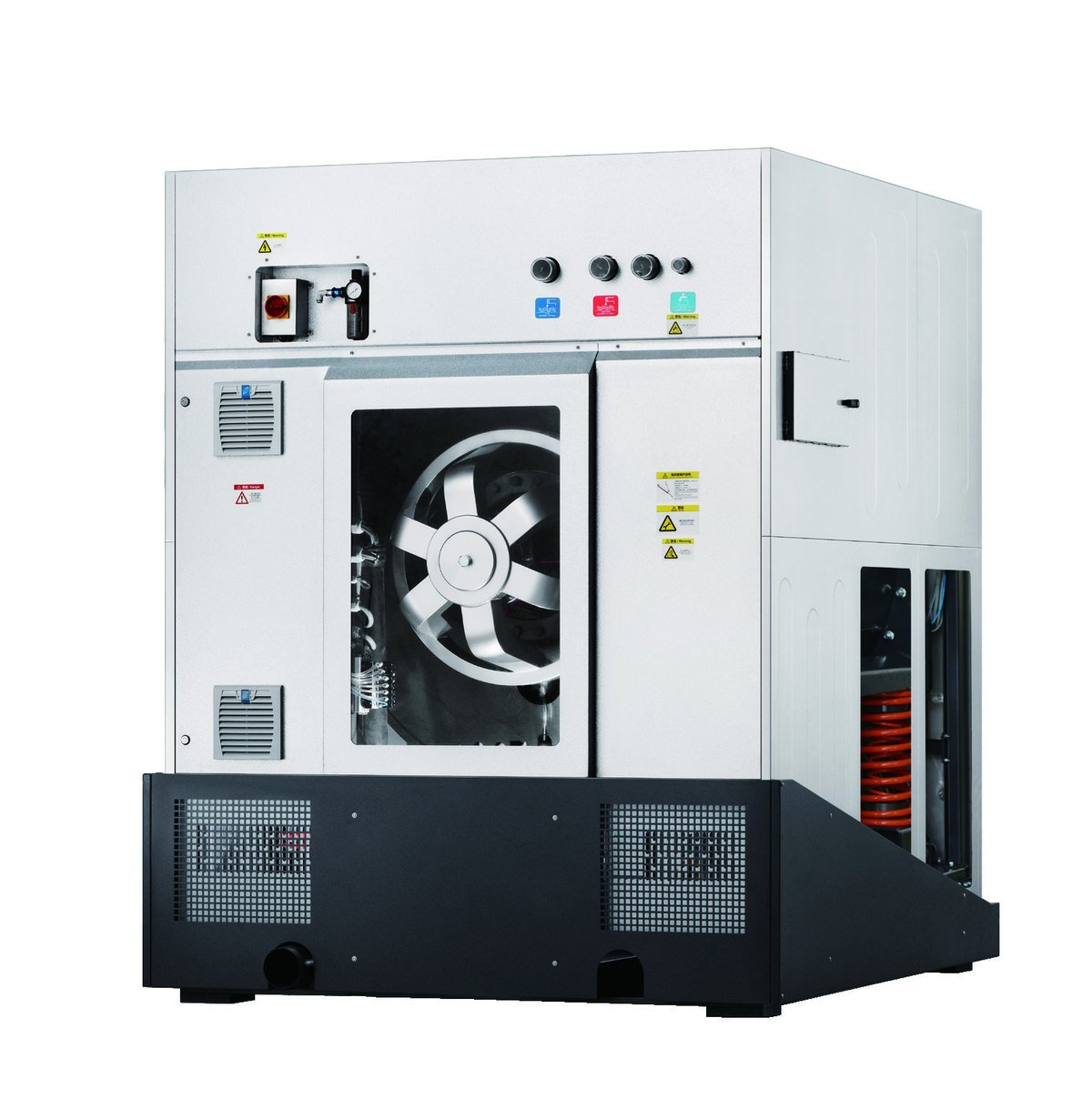

Forward-tilting washer body for easy discharge
Washer

15° Front-Tilt Design

A forward-tilting body makes unloading large loads effortless and reduces manual handling and operator strain.

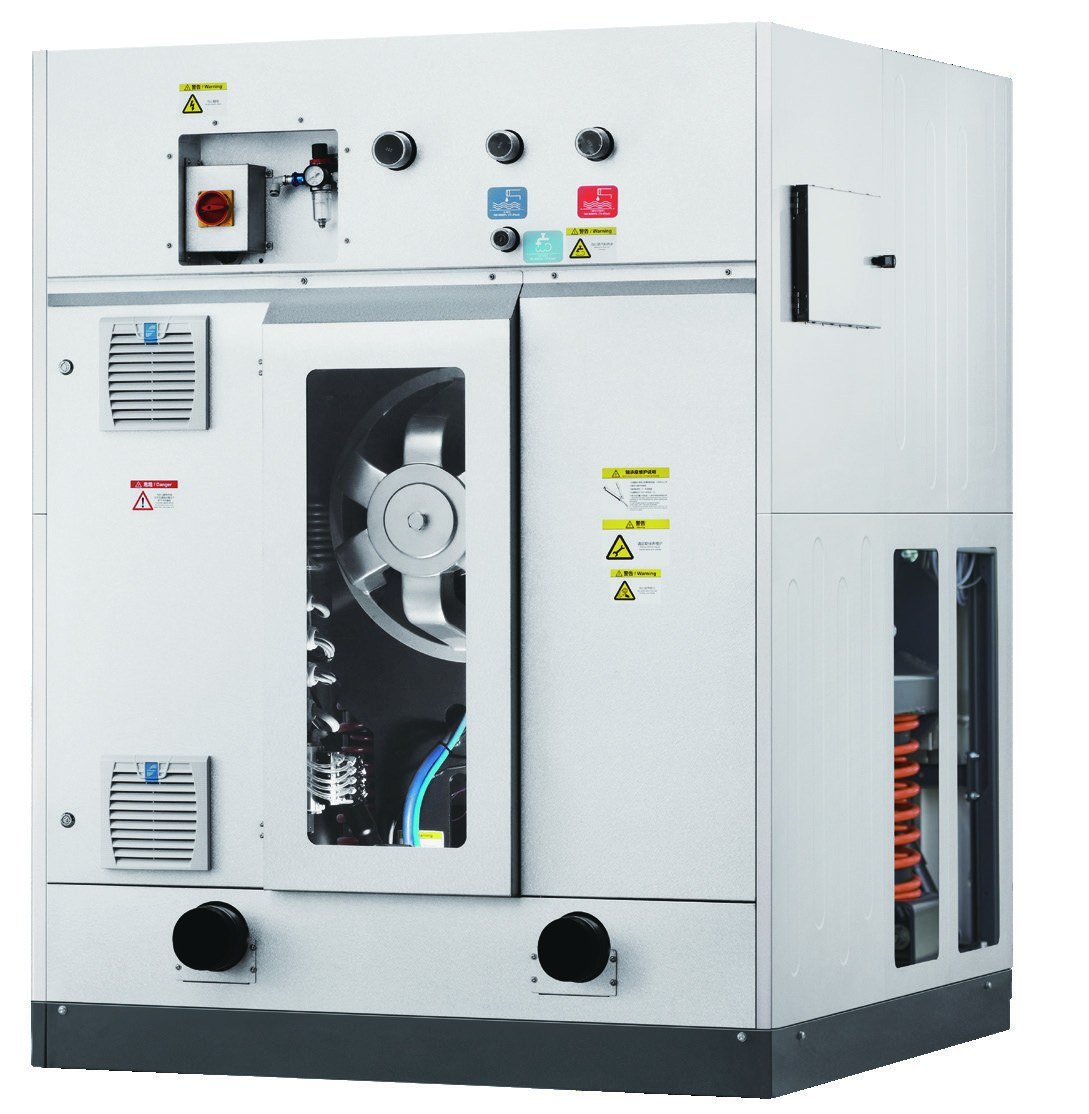

Washer internal transmission and load sensing
Washer

Smart Load Sensing

Automatic weighing adjusts water, steam, and detergent to the actual load for consistent quality and lower cost per cycle.

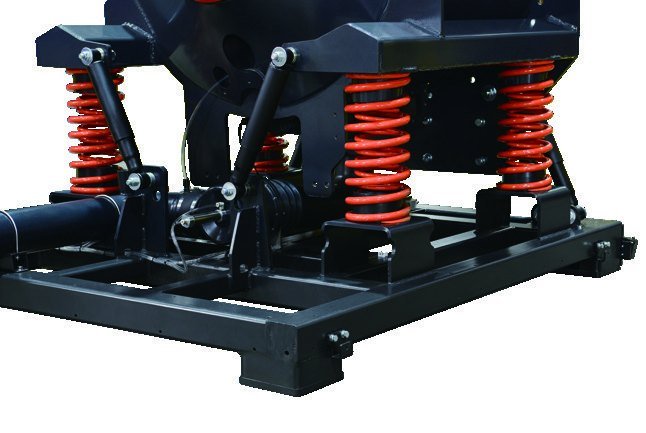

Triple shock absorption suspension springs
Washer

Triple Shock Absorption

Dual-layer base springs, rubber feet, and dampers reach 98% absorption — installs on any floor, no fixed foundation.

270-degree rolled-edge drum opening
Washer

270° Rolled-Edge Opening

A smooth, near-seamless junction between drum and cylinder reduces wear and protects garments during loading.

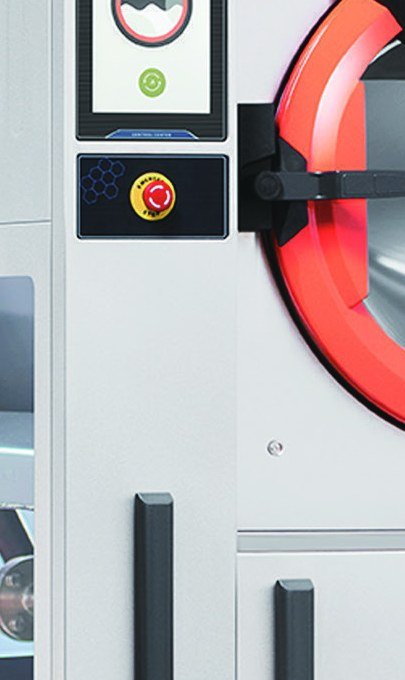

Three-color status indicator on control panel
Washer

Three-Color Status Indicator

Green, blue, and red LED states show normal operation, cycle complete, and fault conditions at a glance across the floor.

Sensor-based humidity control thermal imaging
Dryer

Sensor Humidity Control

Real-time moisture monitoring adjusts drying time to prevent over-drying, protect fabric integrity, and save energy.

Model Lineup

Find Your Match

Four matched series sized to your floor space and daily volume.

Kingstar Industrial Washer Series Washer

Industrial Washers

30 · 40 · 60 · 100 · 120 kg

  • 400G ultra-high spin extraction
  • 12.1" HD touchscreen · 30+5 programs
  • Triple shock absorption — up to 98%
View Models
Kingstar Industrial Forward-Tilting Washer Series Forward-Tilting Washer

Forward Tilting Washers

100 · 120 kg

  • 15° forward-tilt discharge
  • 400G extraction · 15 kW transmission
  • Smart load sensing · 12.1" touchscreen
View Models
Kingstar Industrial Dryer Series Dryer

Industrial Dryers

40 · 60 · 100 · 120 kg

  • 10" full-color touchscreen · 99 programs
  • Sensor-based humidity control
  • 100 cm door · 100 kg dried in ~40 min
View Models
Kingstar Industrial Forward-Tilting Dryer Series Forward-Tilting Dryer

Forward Tilting Dryers

100 kg

  • Front-tilt discharge · lower labor
  • Steam, electric, or gas heating
  • 10" touchscreen · sensor humidity control
View Models

Technical Specifications

Model Overview & Detail

Pick a category to compare every model in that series side by side.

Washers SHS-2030–2120
  • 30–120 kg capacity
  • 400G extraction
  • 12.1" HD touchscreen
Forward-Tilting Washers SHS-2100T–2120T
  • 100–120 kg capacity
  • 15° forward tilt
  • 400G extraction
Dryers SDR-2040–2120
  • 40–120 kg capacity
  • 99 programs
  • Sensor humidity control
Forward-Tilting Dryers SDR-2100T
  • 100 kg capacity
  • Front-tilt discharge
  • Steam / electric / gas
SpecificationSHS-2030SHS-2040SHS-2060SHS-2100SHS-2120
Capacity30 kg40 kg60 kg100 kg120 kg
Drum volume300 L400 L600 L1000 L1200 L
Max spin speed870 rpm833 rpm760 rpm745 rpm745 rpm
Dehydration factor350G350G350G400G400G
Transmission power4 kW5.5 kW7.5 kW11 kW11 kW
Inner drum diameterØ820 mmØ900 mmØ1080 mmØ1310 mmØ1310 mm
Control panel12.1" HD12.1" HD12.1" HD12.1" HD12.1" HD
Total weight1350 kg2200 kg2600 kg3260 kg3360 kg

Full specification sheets and dimensional drawings are available on request. Contact us for detailed brochures →

Highlights

Advanced Technology, Distinctive Features

The engineering pillars behind the washer and dryer series — expand any highlight to explore.

The washer's 12.1-inch HD touchscreen handles automatic water addition, prewash, main wash, rinsing, and neutralizing — with 30 preset programs and 5 one-touch cycles. Smart load sensing weighs each batch and fine-tunes water, steam, and detergent, while an intelligent three-color status indicator (green, blue, red) makes machine status readable from across the floor.

12.1-inch HD touchscreen

Engineered with a reinforced structure, efficient transmission system, and high-quality inverter to support 400G extraction force. High-speed extraction significantly reduces the moisture content in towels and linens — shorter drying times, higher daily throughput, and reduced steam consumption that substantially lowers operational costs.

High-speed extraction

A unique lower-suspension system uses a triple structure — inner and outer dual-layer base springs, rubber feet, and dampers — achieving ultra-low vibration with a shock absorption rate up to 98%. No fixed foundation is required, so the machine installs on any floor. The 270° rolled-edge opening between drum and cylinder adds strength and protects garments.

Triple shock absorption suspension

The dryer's 10-inch full-color touchscreen offers 99 built-in, customizable programs tailored to different fabrics and load sizes. Sensor-based humidity control uses real-time moisture monitoring to automatically adjust drying duration — preventing over-drying, protecting fabric integrity, and improving energy efficiency.

Humidity control technology

Designed with a 1:20 loading capacity ratio and a 304 stainless steel inner drum. A high-power heating system with an added insulation layer on the outer cylinder ensures quick temperature rise and good heat retention. The 100 cm large-diameter door with upper and lower opening makes loading and unloading towels effortless — a 100 kg load dries within about 40 minutes.

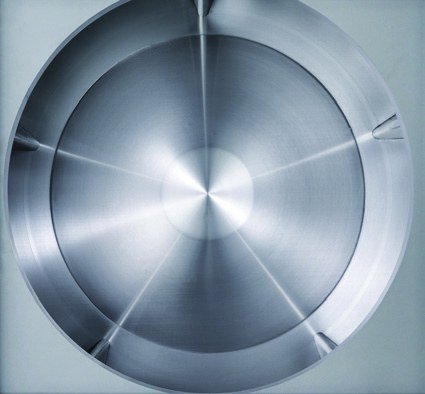

304 stainless steel dryer drum

Capacity & Performance

Built for High-Volume Operations

Matched washer and dryer series from 30 kg to 120 kg for laundries, hospitals, and hospitality at scale.

Washer Series Capacity

Load capacity per cycle (kg), 30–120 kg models

30 kg
30 kg
40 kg
40 kg
60 kg
60 kg
100 kg
100 kg
120 kg
120 kg
400G
Ultra-high spin extraction — drier linens, lower steam use
98%
Shock absorption — triple-structure suspension, no fixed foundation
15°
Forward-tilting discharge reduces operator labor
100kg
Dried in ~40 minutes — 1:20 load ratio, 100 cm door

Applications

Industries We Serve

Kingstar Industrial systems are trusted in demanding environments across North America.

Commercial LaundromatsHotels & ResortsHospitals & HealthcareUniversities & CollegesIndustrial Laundry ServicesDry CleanersMilitary & Government FacilitiesTextile Processing Operations

Benefits

Why Choose Kingstar Industrial

Factory-direct technology backed by local expertise and North American support.

High-speed extraction lowers energy use

Lower Operating Costs

400G extraction pulls more water before drying, cutting energy and steam bills. Intelligent load sensing minimizes water and detergent consumption on every cycle.

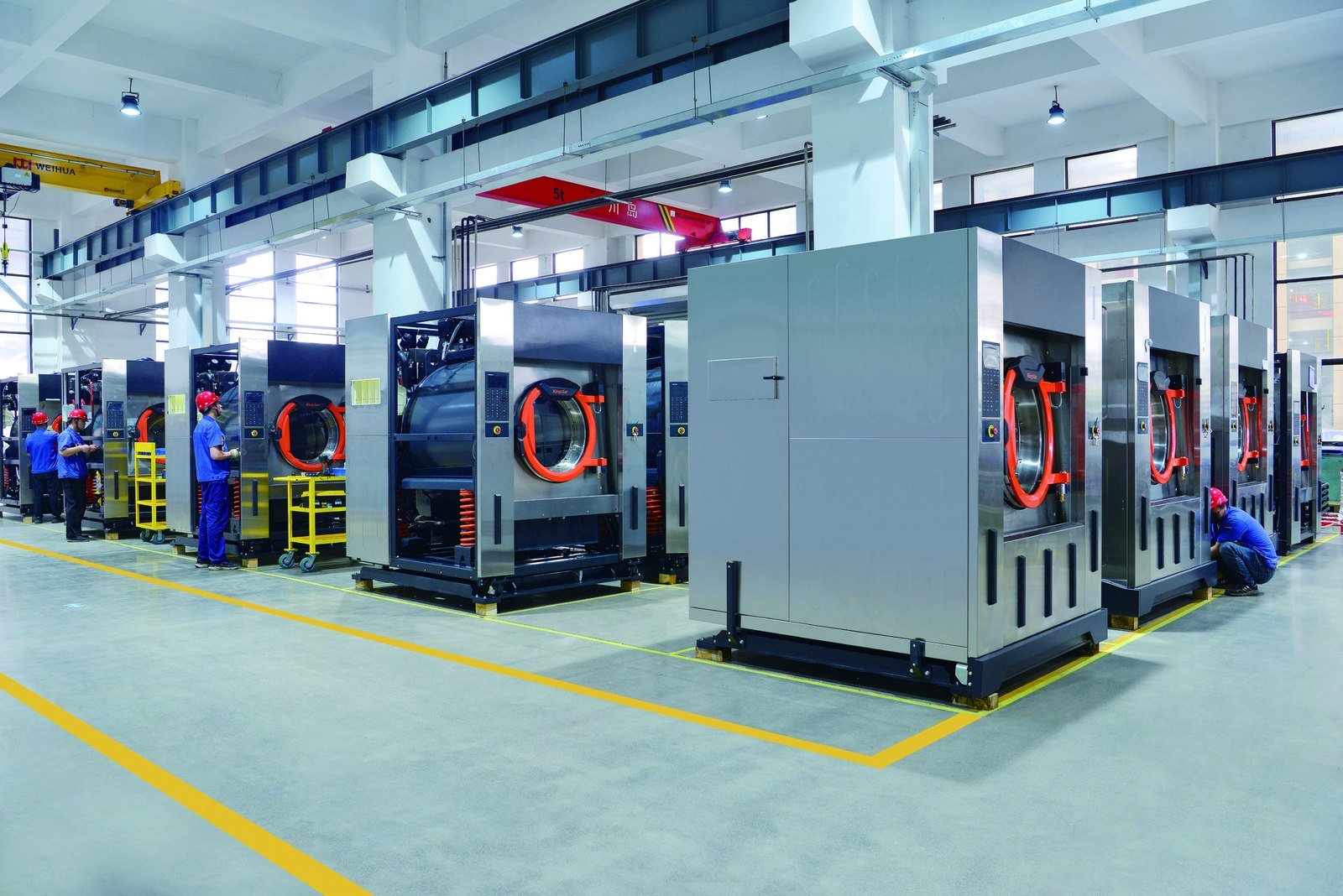

Kingstar industrial manufacturing line

Maximum Uptime & Durability

Stocked parts warehouse in Anaheim and factory-trained technicians for rapid response. 304 stainless construction and triple-structure suspension for long-term reliability.

Consistently finished, folded linens

Scalable, Fabric-Safe Results

Matched washer and dryer capacities from 30–120 kg scale with your volume, while rolled edges, smart sensing, and sensor drying protect linens load after load.

Frequently Asked Questions

Industrial Equipment FAQs

No. The triple shock absorption system — inner/outer base springs, rubber feet, and dampers — achieves up to 98% vibration reduction, allowing installation on any floor type without a dedicated foundation.

The 100 kg dryer dries a full 100 kg load within about 40 minutes at 5+ kg steam pressure. Its 100 cm door diameter simplifies loading from a matched 100 kg washer, and the 1:20 loading ratio keeps airflow efficient.

The washer-extractor series is offered in 30, 40, 60, 100, and 120 kg. The dryer series is offered in 40, 60, 100, and 120 kg, so you can match washer and dryer capacities for a balanced workflow.

View All FAQs

Get a Quote

Request Industrial Pricing

Tell us about your facility and requirements. We'll provide a custom equipment recommendation and pricing within one business day.

🕐Response within 1 business day

Related Equipment

Kingstar America's full range of commercial and industrial laundry equipment.

Coin Operated Stacked Washer & Dryer

Coin Operated Washers & Dryers

Self-service laundry solutions engineered for maximum revenue, reliability, and ROI.

Learn more

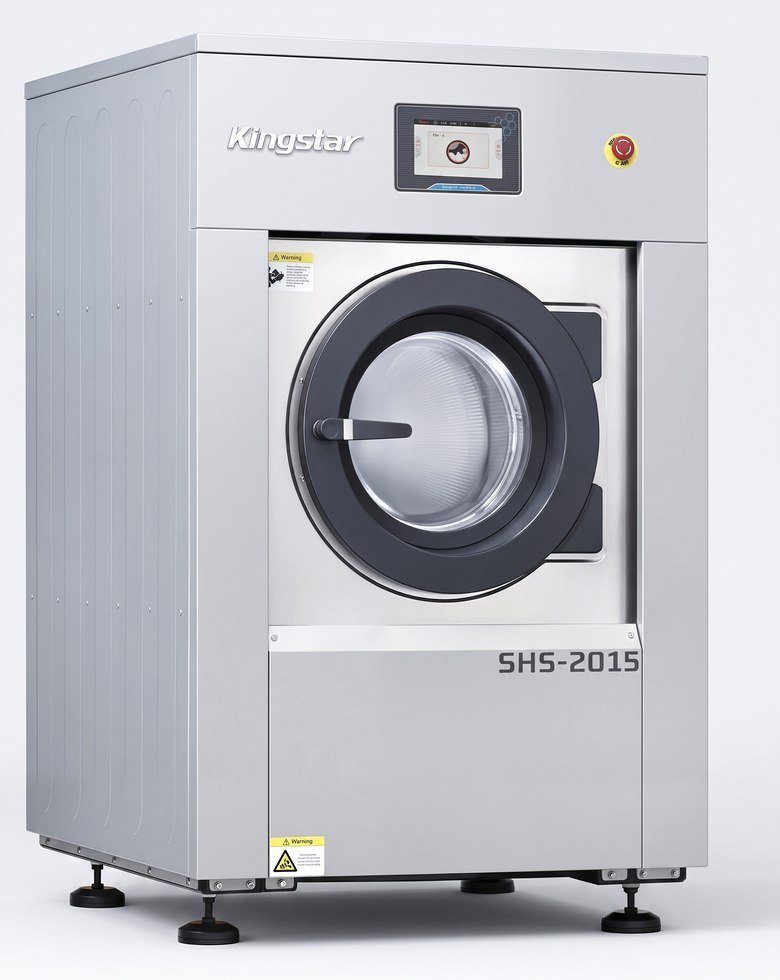

Washer-Extractor Machine

Washer-Extractor Machines

Compact, high-spin washer-extractors for garment care, dry cleaning, and delicate fabric processing.

Learn more

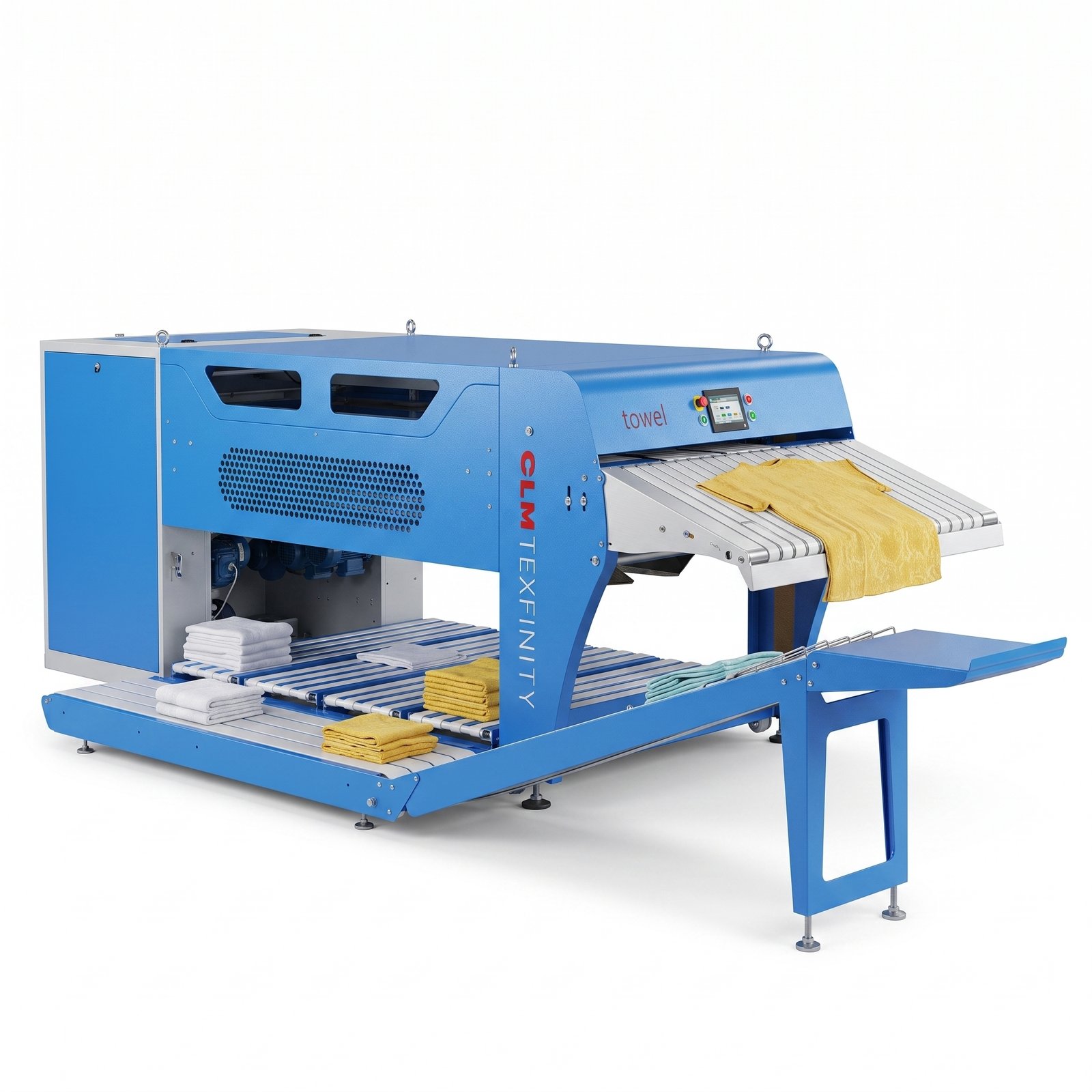

Automated Towel Folder
